Embedded App Authentication

Last updated Oct 28, 2026 View as Markdown

Embedded apps load inside the Seller Area as an iframe. There is no authorization code in the URL — the frontend calls qantra.sessionToken() at runtime to obtain a short-lived JWT, which your server exchanges for a store access token.

Tip

If you create your app using the Nuxt Starter Template via the YouCan CLI, the entire auth flow (Qantra, JWT exchange, session persistence) is already fully implemented for you.

If you're building an external app that opens in its own browser tab, see External App Authentication instead.

Core Concepts

Term	Description
Session ID (`session`)	A stable, deterministic identifier for the (app × seller × store) combination. Passed in the launch URL as `?session=`. Used as your DB key — not an exchangeable credential.
Session Token	A short-lived JWT signed by YouCan. Obtained at runtime via `qantra.sessionToken()` — it is not in the URL. This is what is exchanged for an access token.
Access Token	A bearer token for the YouCan Store Admin API, offline or online. See Token types.
HMAC	A SHA-256 signature appended to the launch URL, proving it came from YouCan.
Qantra	YouCan's communication bridge between the Seller Area (parent window) and your app (iframe).

The Launch URL

When a seller opens your embedded app, the Seller Area builds a signed URL:

https://your-app.com/?timestamp=...&session=SID&store=my-store&seller=ID&locale=en&embedded=1&host=bXktc3RvcmUueW91Y2FuLnN0b3JlL2FkbWlu&hmac=SIG

The session param is only a DB lookup key. The actual session JWT is fetched at runtime via qantra.sessionToken().

The store admin (my-store.youcan.store/admin) is sent base64-encoded in host. When your app is loaded outside the Seller Area, redirect to https://<decoded host>/apps/<your app handle>/app.

Step 1 — HMAC Verification

Always verify the HMAC before doing anything else. An invalid HMAC means the request didn't come from YouCan.

Take all query params from the URL except hmac.
Build a query string (in the same order as received).
Compute HMAC-SHA256(query_string, CLIENT_SECRET).
Compare using constant-time comparison.

Warning

Never use == or === to compare signatures. Use constant-time comparison to prevent timing attacks.

const crypto = require('crypto');

function verifyHmac(queryString, clientSecret) {
  const params = new URLSearchParams(queryString);
  const received = params.get('hmac');
  params.delete('hmac');

  const message = params.toString();
  const expected = crypto.createHmac('sha256', clientSecret).update(message).digest('hex');

  const a = Buffer.from(received ?? '', 'hex');
  const b = Buffer.from(expected, 'hex');
  return a.length === b.length && crypto.timingSafeEqual(a, b);
}

Step 2 — Obtain a Session Token via Qantra

How `qantra.sessionToken()` works

Qantra uses postMessage to communicate with the Seller Area, which calls its own internal API to generate and return the JWT:

Auto-injection via `qantra.initialize()`

Calling qantra.initialize() patches window.fetch so all same-origin requests automatically include:

http

Authorization: Bearer <live session JWT>
X-Requested-With: XMLHttpRequest

Your server reads the Authorization: Bearer header on every request — no manual token wiring needed. If your server responds with x-youcan-retry-invalid-session-request, Qantra calls qantra.sessionToken() again and retries the request once automatically.

Step 3 — Exchange the Session Token

Server middleware (Node.js / Express)

const jwt = require('jsonwebtoken');
const { exchangeSessionToken, db } = require('./lib');

async function sessionMiddleware(req, res, next) {
  const authHeader = req.headers['authorization'];
  if (!authHeader) return next();

  const token = authHeader.replace('Bearer ', '');
  const payload = jwt.verify(token, process.env.YOUCAN_API_SECRET, {
    audience: process.env.YOUCAN_API_KEY,
  });

  if (payload.iss !== `${payload.dest}/admin`) {
    return res.status(401).end();
  }

  let session = await db.session.findOne({ id: payload.sid });

  if (!session) {
    session = await db.session.create({ id: payload.sid, store: payload.str });
  }

  if (!session.accessToken) {
    const { access_token } = await exchangeSessionToken(token);
    session = await db.session.update({ id: payload.sid, accessToken: access_token });
  }

  req.session = session;
  next();
}

Token exchange request

async function exchangeSessionToken(sessionToken, type = 'offline') {
  const res = await fetch('https://api.youcan.shop/oauth/token', {
    method: 'POST',
    headers: { 'Content-Type': 'application/x-www-form-urlencoded' },
    body: new URLSearchParams({
      grant_type: 'urn:ietf:params:oauth:grant-type:token-exchange',
      client_id: process.env.YOUCAN_API_KEY,
      client_secret: process.env.YOUCAN_API_SECRET,
      subject_token: sessionToken,
      subject_token_type: 'urn:ietf:params:oauth:token-type:id_token',
      requested_token_type: `urn:youcan:params:oauth:token-type:${type}-access-token`,
    }),
  });

  return res.json(); // { access_token, expires_in }
}

Parameter	Value
`grant_type`	`urn:ietf:params:oauth:grant-type:token-exchange`
`subject_token`	The session token from `qantra.sessionToken()`
`subject_token_type`	`urn:ietf:params:oauth:token-type:id_token`
`requested_token_type`	`urn:youcan:params:oauth:token-type:offline-access-token` (default) or `urn:youcan:params:oauth:token-type:online-access-token`

grant_type=token_exchange with a session_token parameter is still accepted, with the same requested_token_type.

Token types

	Offline	Online
Tied to	The store	The person who opened your app
Lifetime	No expiry	24 hours, no refresh token
Scopes	Your app's scopes	Your app's scopes, cut down to the person's store permissions
Use	Webhooks, background jobs, syncs	Requests made for the person in your app's UI

You get the same offline token on every exchange for one store.
The offline token's scopes are updated to your app's current scopes on each exchange.
Do not revoke the offline token when a session ends. A revoked token cannot be used anywhere in your app until you exchange again.
A request with an online token outside the person's permissions is answered with 401.

You get the person in the response of an online exchange:

json

{
  "token_type": "Bearer",
  "expires_in": 86400,
  "access_token": "...",
  "associated_user_scope": "read-orders write-orders",
  "associated_user": {
    "id": "id_2Ada0Lovelace0Example0Id00",
    "first_name": "Ada",
    "last_name": "Lovelace",
    "email": "ada@example.com",
    "locale": "en",
    "account_owner": false
  }
}

Field	Description
`associated_user.id`	The person's account id. It is the same in every store.
`associated_user.account_owner`	`true` when the person owns the store
`associated_user_scope`	The token's scopes, after the person's permissions are applied

JWT Payload

json

{
  "iss": "https://my-store.youcan.store/admin",
  "dest": "https://my-store.youcan.store",
  "aud": "<YOUR_CLIENT_ID>",
  "sub": "<seller-user-id>",
  "str": "<store-id>",
  "sid": "<stable-session-id>",
  "jti": "<token-id>",
  "scope": "read-orders edit-orders",
  "iat": 1709000000,
  "nbf": 1709000000,
  "exp": 1709000060
}

Field	Use
`iss`	The store's admin URL. Must be `dest` followed by `/admin`.
`dest`	The store's YouCan URL (`https://<slug>.youcan.store`). A custom domain of the store is never used here.
`aud`	Must match your Client ID
`sub`	The id of the seller who opened your app
`str`	The store ID
`sid`	Session ID. Use it as your DB primary key.
`scope`	Your app's scopes, separated by spaces
`nbf`	Reject the token before this time.
`exp`	Reject expired tokens. Session tokens are valid for 1 minute.

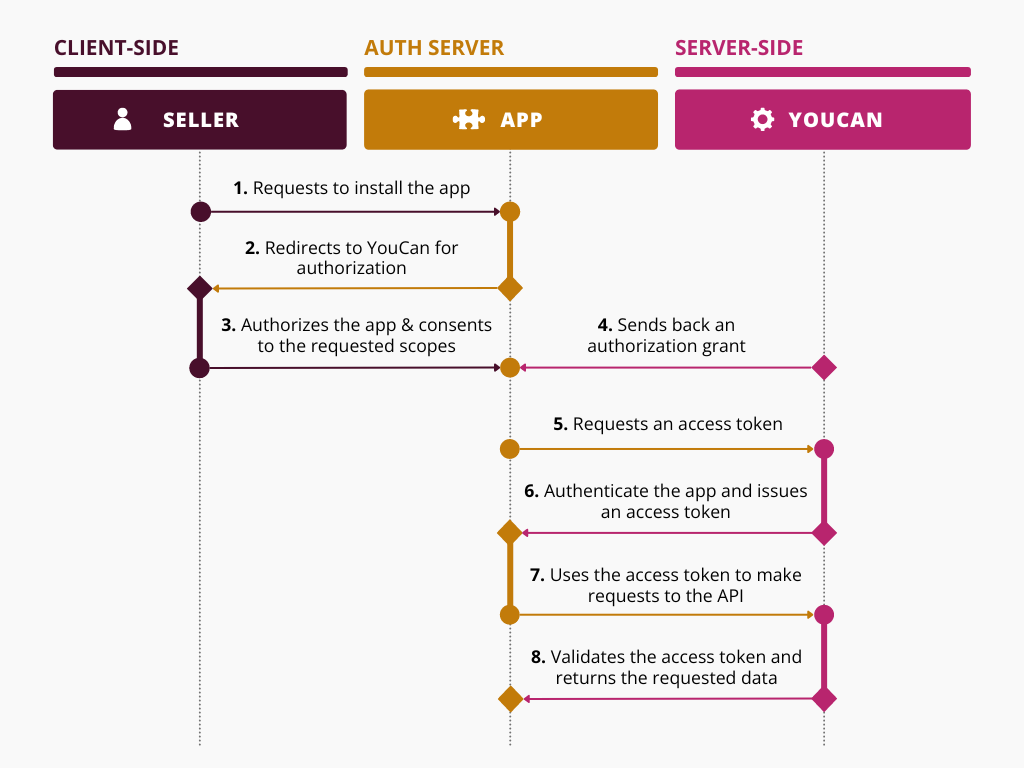

Full Flow Diagram

Persisting Sessions

Recommended schema

sql

CREATE TABLE sessions (
  id                  TEXT PRIMARY KEY,  -- JWT `sid`
  store               TEXT NOT NULL,     -- store id (JWT `str`)
  access_token        TEXT               -- null until first exchange
);

On re-install or re-open

When the HMAC-verified launch URL is processed, always reset the access token:

async function handleSessionPost(sessionId, store) {
  const existing = await db.session.findOne({ id: sessionId });

  if (existing) {
    // Reset to force fresh token exchange (handles reinstalls)
  } else {
    await db.session.create({ id: sessionId, store });
  }
}

Re-authentication & Token Recovery

Scenario	Action
Seller opens embedded app	`qantra.sessionToken()` JWT injected → server looks up session → reuses stored token
No access token in DB	JWT present → server does `token_exchange` → persists token
YouCan API returns `401`	Clear `access_token` in DB. Qantra retries with fresh JWT from `qantra.sessionToken()`.
App uninstalled	`app.uninstalled` webhook → clear all access tokens for the store
